Product Description
Cooking zones

• Usable area W 31 x D 44 cm.

• Two control knobs with illuminated ring, cooking position and output marking.
• Electronic temperature control from 120 (degree)C to 240 (degree)C.

• Two zones, each 1500 W, can be operated together as a complete surface or each halve separately.
• Keeping warm setting.
• Cleaning setting.
• Simple to clean surface.

• Safety shut-off.
• Pre-heat and residual heat indicator.

• Depending on the type of installation - surface-/ or flush-mounted, with or without cover - the specific location of the control knob positions may vary.
• If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
• The bearing capacity and stability,
  in the case of thin countertops in
  particular, must be supported using
  suitable substructures. Take into
  account the appliance weight and
  additional loads.
• Additional instructions for flush mounting:
• Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
• The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.
• If installing several appliances in individual cut-outs allow for a division bar of inimum 1 " (50 mm) between the individual cut-outs.
• A minimum lateral clearance of at least 40 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
• Appliance can be snapped into the worktop from above.
• Appliance weight: approx. 12 kg.

• Total rating: Connected load: 3000 W
• Plan for a 59 1/16" connecting cable
  without plug (hardwire required).

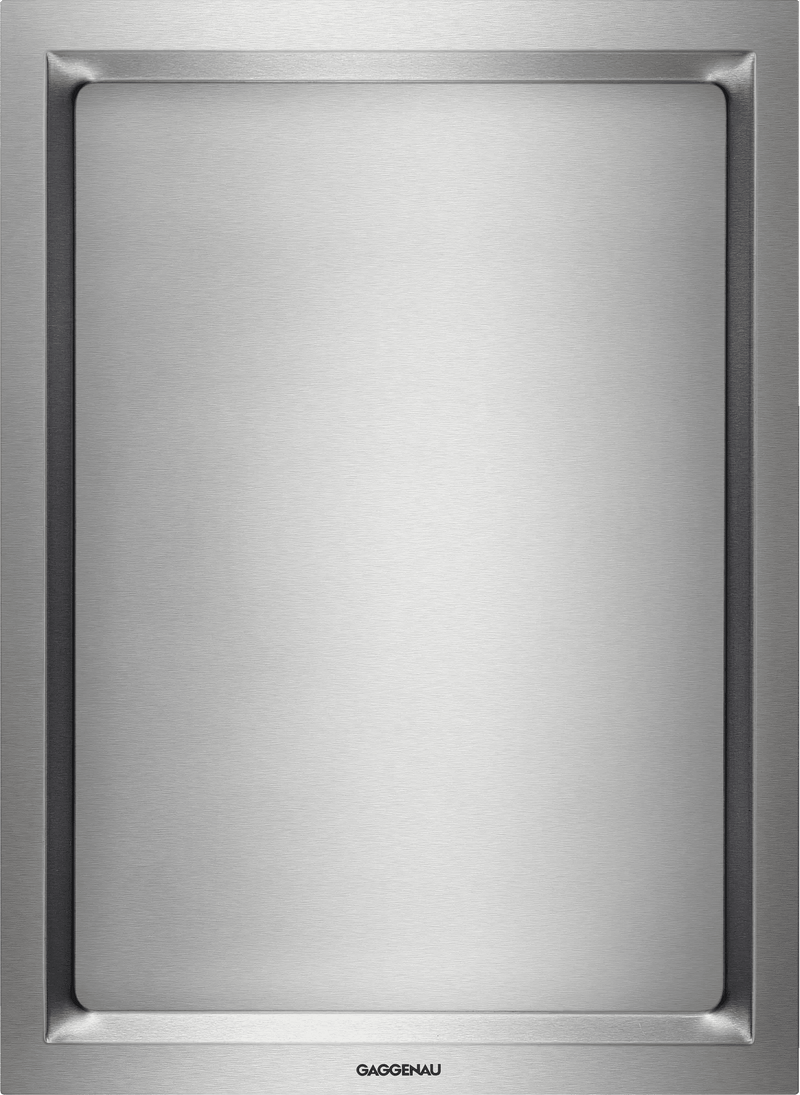

• Hard chrome-plated surface for teppan cooking and use as griddle, grill, searer and warming plate. No pots or pans necessary.
• Exact temperature control up to 480 (degree)F, with warming and cleaning settings
• Optimum heat distribution
• Solid stainless steel control knobs
• Precision crafted 1/8-inch stainless steel frame
